Jetson hardware validation¶
Validated on two Jetson platforms (both in Docker and native):
- Jetson Xavier NX — JetPack 5.1 (L4T R35.x), GStreamer 1.16.3
- Jetson Orin NX — JetPack 6 (L4T R36.x), GStreamer 1.20.3
Test results¶
All 11 test suites pass on both Xavier NX and Orin NX (65 assertions + a fuzz run):
1/11 nvmm_buffer OK 10 passed (create, map, move, release, export_fd, planes)
2/11 nvmm_transform OK 10 passed (scale, crop, convert, flip, rotate 90/270, interpolation, compute-mode, null safety)
3/11 gst_nvmm_allocator OK 9 passed (create, alloc, surface map, per-plane, roundtrip, pool video-meta strides)
4/11 fuzz_shm_header OK (200k random NvmmShmHeader inputs through the consumer's validation — no crash/OOB/UB)
5/11 optical_flow_meta OK 4 passed (api type, add/get, S10.5 decode, copy transform)
6/11 nvmm_compositor OK 4 passed (create, output props, request pads, pad placement props)
7/11 nvmm_sink OK 5 passed (create, properties, pool-size guard, state, shm lifecycle)
8/11 nvmm_appsrc OK 2 passed (create, properties)
9/11 gstcheck_elements OK 8 passed (discovery, state, properties, caps, pipeline)
10/11 nvmm_det_meta OK 7 passed (wire layout/segment size, slot pointer math, add/get roundtrip, empty + count-clamped objects, survives buffer copy)
11/11 integration OK 6 passed (multi-shm, dynamic props, pipeline bin, alloc stress, protocol, missing-shm)
Ok: 11 Fail: 0
The
nvmm_det_metasuite is DeepStream-free POD +GstMeta(noNvBufSurface), so it is hardware-agnostic; re-confirmed 7/7 on Orin NX (JP6) and the x86 dev image. Note: inside the Jetson build container the NVMM-allocating suites fail withNvRmMemInitNvmap … Memory Manager Not supported(no/dev/nvmapin the container) — build in the container, run the NVMM suites on the host.
Run the suite under sanitizers with ./scripts/run-sanitizers.sh (ASan+UBSan,
and TSan on a privileged container / bare host).
11 pipeline tests also pass via scripts/jetson-test.sh:
passthrough, flip-180, rotate-90, rotate-270, scale, crop, format-convert,
decoder, tee-2way, 30f-throughput, and the two-process IPC pipeline
(nvmmsink → nvmmappsrc, verified frames cross the process boundary).
The compositor logic (aggregate() → NvBufSurfTransform CROP_DST) needs real
NVMM buffers to run, so it is covered on-hardware rather than in the mock unit
test: a 2-input composite was run on both hosts (videotestsrc smpte + ball
→ nvmmcompositor → JPEG, rc=0). On Orin a side-by-side layout was visually
confirmed — smpte in the left tile (sink_0, xpos=0), ball in the right
(sink_1, xpos=640); on Xavier the default-fill composite was visually confirmed
(VIC-scaled input). These two runs are the +2 on-hardware pipeline tests over the
jetson-test.sh set.
Stress tests¶
| Test | Result |
|---|---|
| State changes x100 (NULL→READY→NULL) | PASS |
| 500f pool stress (1080p→720p, flip) | PASS (21s) |
| 50 rapid pool recreate cycles | PASS |
| tee x3 with different transforms | PASS |
| Caps renegotiation (4 resolution changes) | PASS |
Throughput / sustained-load (nvmmconvert, compute-mode)¶
1000 frames 1080p→480p through nvmmconvert in one run (sustained-load stress +
per-engine throughput), fakesink sync=false. All runs completed with rc=0 — no
crash, stall, or leak over the run.
| Host | compute-mode | 1000 frames | Throughput |
|---|---|---|---|
| Xavier NX (JP5.1.2) | vic | 26.4 s | ~38 fps |
| Xavier NX (JP5.1.2) | gpu | 20.2 s | ~50 fps |
| Orin NX (JP6) | vic | 18.0 s | ~56 fps |
| Orin NX (JP6) | gpu | 14.4 s | ~69 fps |
The GPU engine is faster than the VIC for this downscale on both platforms; pick
compute-mode=vic instead to keep the GPU free for other work. Orin is ~1.4×
Xavier across the board.
Throughput / sustained-load (nvmmcompositor)¶
600 frames of a 2-input composite (two 960×1080 inputs → one 1920×1080 NVMM
frame, VIC CROP_DST per pad) in one run, fakesink sync=false. Both runs
completed rc=0 — no crash, stall, or leak.
| Host | inputs → output | 600 frames | Throughput |
|---|---|---|---|
| Xavier NX (JP5.1.2, Docker) | 2×960×1080 → 1920×1080 | 8.8 s | ~68 fps |
| Orin NX (JP6, native) | 2×960×1080 → 1920×1080 | 3.7 s | ~164 fps |
Two VIC transforms per output frame; Orin sustains real-time 1080p compositing of two streams with headroom to spare.
Optical flow (nvmmofa, OFA — Orin only)¶
nvmmofa runs VPI dense optical flow on the Orin OFA engine from zero-copy
NVMM, attaching the motion-vector field as NvmmOpticalFlowMeta. Xavier has no
OFA hardware (documented N/A, like NVENC). Validated end-to-end on Orin NX (JP6):
- Produce → consume:
videotestsrc → nvvidconv → NVMM NV12 → nvmmofa → nvmmflowstats. The consumer read a160×120grid-4 flow field per frame; the first frame has no predecessor and correctly carries no flow (19/20 frames with flow).grid-size=1produces a dense per-pixel640×480field. -
Responds to scene motion — mean field magnitude over the same pipeline with three patterns (15 frames each):
pattern motion avg mean magnitude smpte~static (small animated patch) 4.59 px balla translating ball 5.12 px snowfull-frame random noise 6.93 px Magnitude rises monotonically with scene motion, confirming the element runs OFA on the right frames and the field tracks real content. The non-zero static baseline (4.59 px) is the dense-flow artifact expected of OFA in textureless/low-texture regions (aperture problem) — i.e. this validates that a flow field is produced and is motion-responsive, not that every cell is an accurate vector. Treat the field as approximate; threshold/smooth for analytics. - Throughput: 300 frames 720p,
grid-size=4, sustained ~46 fps, rc=0.
There is no mock/CI unit test for nvmmofa: it is VPI-gated and OFA is Orin-only,
so it is exercised on-device (the documented exception, like the NVENC Xavier
gap). The OFA (format, backend) gate is recorded by probes/vpi_ofa_probe.cpp.
Detection metadata side-channel (IPC)¶
The optional metadata side-channel carries flat detection
records (NvmmFrameMeta) alongside each frame so a consumer can recover them
without re-running inference. Validated on Orin NX (JP6, L4T R36.4.3):
- Wire format +
GstMeta(unit, host):nvmm_det_meta7/7 — segment-size math with/without the metadata region, per-slot pointer arithmetic, add/get round-trip, empty and count-clamped object lists, and survival acrossgst_buffer_copy(copy-transform only; non-copy transforms drop the meta). - Cross-process surface path (E2E, host): the protocol-v3 bump does not
regress zero-copy IPC — a two-process
videotestsrc → nvvidconv → NVMM NV12 → nvmmsink/nvmmappsrc → nvvidconv → fakesinkrun delivered 20/20 frames across the boundary, with and withoutexport-metadata/import-metadata. - Properties + graceful degradation:
nvmmsink export-metadataandnvmmappsrc import-metadataare exposed; on a build without-Denable_deepstream_meta,export-metadata=trueis a documented no-op (warns once,meta_active=FALSE) and frames still flow — confirmed.
Not yet exercised on hardware: the DeepStream→flat extraction
The producer-side NvDsBatchMeta → NvmmFrameMeta serialization is gated
behind -Denable_deepstream_meta and needs DeepStream (nvdsmeta.h,
nvinfer). The validation Orin has no DeepStream installed, so the full
nvinfer → nvmmsink(export) → nvmmappsrc(import) → GstNvmmDetMeta path with
real detections crossing has not been run end-to-end on hardware. Until a
DeepStream-equipped box is available, that extraction step is covered only by
the unit tests above. Everything downstream of the wire record (consumer
attach, transform, graceful no-op) is validated.
Sanitizer results¶
./scripts/run-sanitizers.sh builds and runs the suite under ASan+UBSan and,
separately, TSan. It is exercised two ways:
Mock build (x86 dev container):
| Sanitizer | Suites | Result |
|---|---|---|
| ASan + UBSan | all 11 (libasan preloaded) |
Clean |
| ThreadSanitizer | 6 non-plugin (buffer, transform, allocator, fuzz, optical_flow, det_meta) | Clean |
Real-API build (Orin NX, JP6) — same script in a privileged container with
/dev mounted so /dev/nvmap and the CUDA allocator are reachable:
| Sanitizer | Suites | Result |
|---|---|---|
| ASan + UBSan | all 11 | Clean |
| ThreadSanitizer | 4 (allocator, fuzz, optical_flow, det_meta) | Clean |
The element tests (nvmm_compositor, nvmm_sink, nvmm_appsrc,
gstcheck_elements, integration) load plugins via dlopen, which trips ASan's
"runtime does not come first" check unless libasan is LD_PRELOADed — the
runner does this, so all 11 suites pass clean under ASan+UBSan; the loader leak
is GStreamer's, not this code. Under TSan those dlopen tests can't run (the
unsanitized plugin scanner can't load a sanitized .so), so the plugin suite
is excluded; TSan needs setarch -R (a privileged container or bare host) to
disable ASLR. On the real-API build, nvmm_buffer and nvmm_transform are
also excluded from TSan (suite nvidia_hwlib): they delegate to closed NVIDIA
libs that TSan flags but we cannot fix — libnvbufsurftransform double-locks its
own global mutex and the CUDA allocator OOMs under TSan's shadow reservation. On
the mock build those two use the mock NvBufSurface and stay TSan-clean, so the
skip is a no-op there. The atomic-heavy IPC paths (shm header/fuzz, det-meta,
allocator) are covered under TSan on both builds.
Benchmark results¶
1000 iterations each. VIC transform includes hardware sync.
Xavier NX (JetPack 5.1)
| Operation | Resolution | Avg (us) | Min (us) | Max (us) |
|---|---|---|---|---|
| alloc/free | NV12 1080p | 591 | 128 | 2291 |
| alloc/free | RGBA 1080p | 2095 | 1072 | 2129 |
| alloc/free | NV12 4K | 3245 | 2091 | 2701 |
| alloc/free | RGBA 4K | 10104 | 7110 | 9164 |
| map/unmap | NV12 1080p | 231 | 222 | 493 |
| VIC transform | 1080p -> 480p | 1947 | 1577 | 4752 |
| VIC transform | 1080p -> 720p | 1655 | 1594 | 1826 |
| VIC transform | 4K -> 1080p | 4002 | 3938 | 4913 |
Orin NX (JetPack 6)
| Operation | Resolution | Avg (us) | Min (us) | Max (us) |
|---|---|---|---|---|
| alloc/free | NV12 1080p | 117 | 14 | 1551 |
| alloc/free | RGBA 1080p | 366 | 33 | 1072 |
| map/unmap | NV12 1080p | 298 | 275 | 374 |
| map/unmap | NV12 480p | 49 | 39 | 61 |
| VIC transform | 1080p -> 480p | 35 | 27 | 49 |
| VIC transform | 1080p -> 720p | 95 | 85 | 114 |
| VIC transform | 4K -> 1080p | 285 | 217 | 459 |
| VIC transform | 4K -> 480p | 31 | 26 | 67 |
Orin allocation is 5x faster than Xavier NX. VIC transform 14-56x faster depending on resolution (e.g. 1080p->480p: 1947 us -> 35 us).
VIC hardware accelerator verification¶
Evidence that the Tegra VIC (Video Image Compositor) hardware engine is engaged:
- NvBufSurfTransform defaults to VIC compute on Jetson — the API selects
NvBufSurfTransformCompute_Default, which maps to VIC on Tegra (not GPU or CPU). - Transform latency confirms hardware acceleration — 35 us per 1080p-to-480p scale on Orin NX (table above). A CPU scale at 1080p would take milliseconds; ~28,500 FPS is only achievable via dedicated hardware.
- NVMM SURFACE_ARRAY memory type — tests use
NVBUF_MEM_DEFAULT→NVBUF_MEM_SURFACE_ARRAYon Jetson (physically contiguous, VIC/NVDEC-managed). Tests FAIL withNVBUF_MEM_SYSTEMfor hardware-only operations, proving the hardware path. - DMA-buf fd export works —
export_fd()returns a valid fd frombufferDesc. - VIC device node —
/dev/nvhost-vicis present and accessible.
Transfer path verification¶
| Path | Pipeline | Result |
|---|---|---|
| CPU -> GPU | videotestsrc ! nvvidconv ! NVMM ! nvmmsink |
OK |
| GPU -> GPU | nvv4l2decoder(NVMM) ! nvvidconv ! NVMM(scaled) ! nvmmsink |
OK |
| GPU -> CPU | nvv4l2decoder(NVMM) ! nvvidconv ! x-raw ! jpegenc ! file |
OK |
Resolution verification¶
| Resolution | Alloc | Map | Transform (to 480p) | Pipeline |
|---|---|---|---|---|
| FHD 1920x1080 | 3103 us | 77 us | 5324 us | OK (133 KB JPEG) |
| 4K 3840x2160 | 263 us | 105 us | 17028 us | OK (491 KB JPEG) |
NvmmBuffer API at both resolutions: NV12 = 2 planes (Y+UV); FHD data_size 3,407,872 B; 4K data_size 12,582,912 B; DMA-buf fd export works at both.
nvmmconvert pipeline proof¶
All operations verified via gst-launch-1.0 on Jetson Xavier NX:
| Operation | Output |
|---|---|
| Passthrough |  |

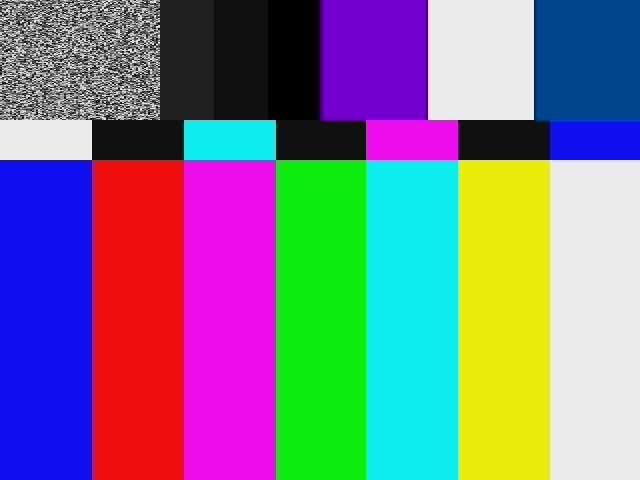

| Flip 180° |  |

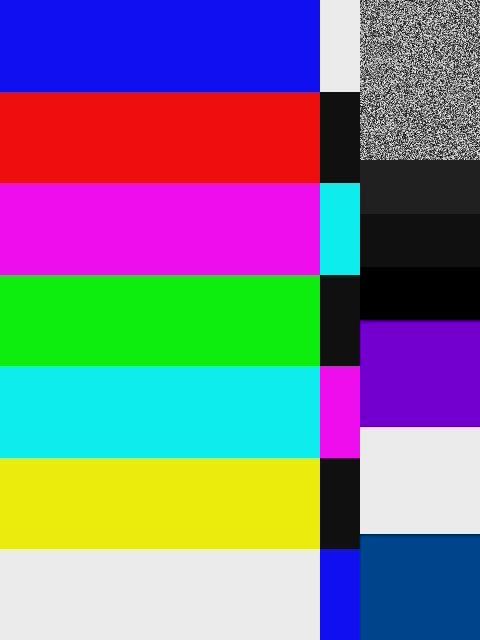

| Rotate 90° CW (640×480→480×640) |  |

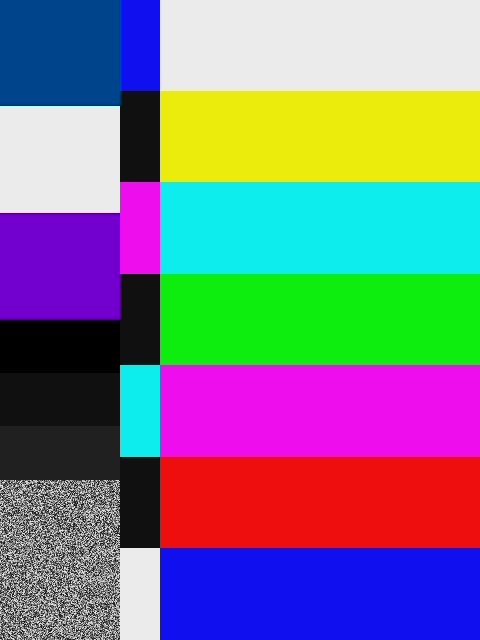

| Rotate 270° CCW (640×480→480×640) |  |

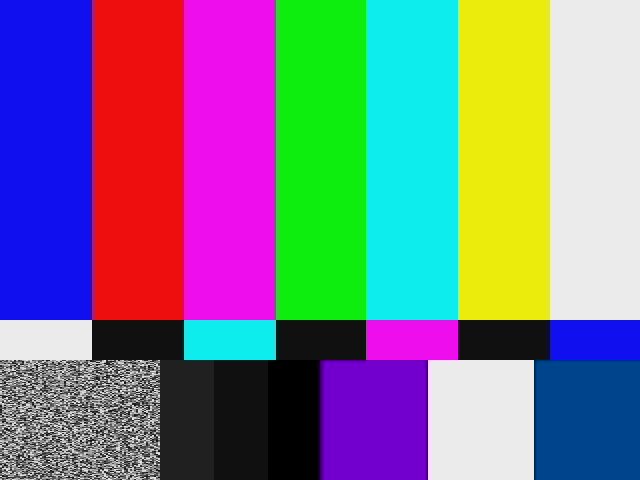

| Flip horizontal |  |

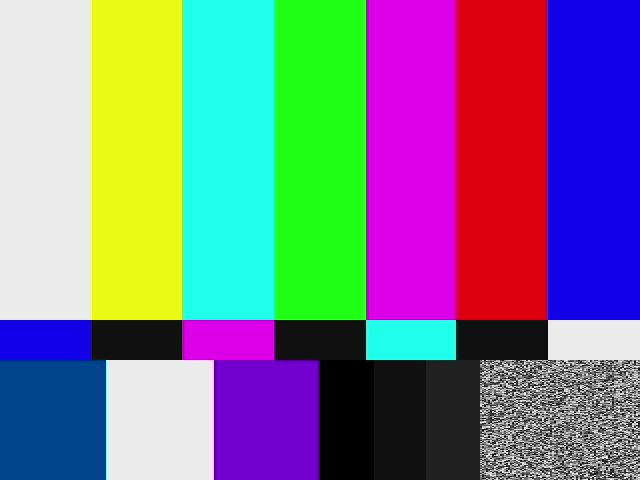

| Scale 1080p→480p |  |
| Crop (100,50,800,600) |  |
Test outputs¶
All images generated on Jetson Xavier NX with real NVMM hardware:
| Image | Description |
|---|---|
 |
smpte_1080p.jpg — 1920x1080 SMPTE test pattern |
 |

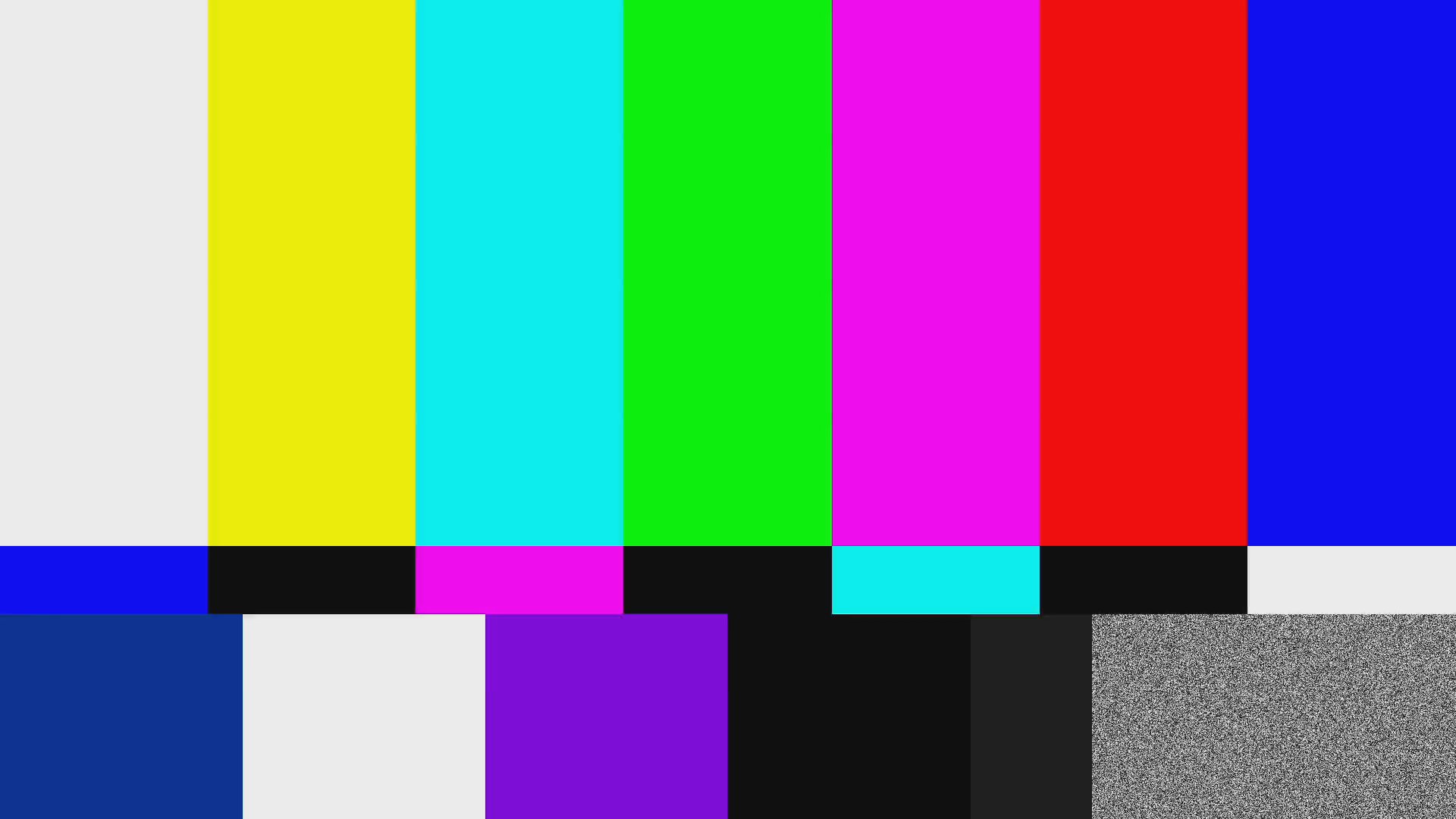

gpu2cpu_1080p.jpg — 1080p GPU→CPU transfer |
 |
4k_roundtrip.jpg — 3840x2160 CPU→NVMM→CPU |
 |
ipc_480p.jpg — IPC consumer via nvmmsink→shm→nvmmappsrc |
 |
shm_consumer_frame.jpg — standalone C shm reader (ROS2-style) |
Reproducing on Jetson¶
git clone https://github.com/PavelGuzenfeld/gst-nvmm-cpp.git
cd gst-nvmm-cpp
# Build (CMake; meson equivalent in Getting started)
cmake -S . -B build-cmake
cmake --build build-cmake -j$(nproc)
# Test + benchmark
ctest --test-dir build-cmake --output-on-failure
./build-cmake/benchmarks/bench_nvmm
# Install + use
sudo cmake --install build-cmake
rm -f ~/.cache/gstreamer-1.0/registry.*.bin # force a GStreamer rescan
gst-inspect-1.0 nvmmconvert
